Simplifying NESSUM Integration with
BRIDGIT-SoM™
"System-on-Module" from ECOLINQX™
At the core of our development platform is the BRIDGIT-SoM™ “System-on-Module”. It is a small, state-of-the-art, fully integrated communication transceiver designed for your most cost-sensitive IoT applications. It delivers the highest communication performance, speed, robustness, and response times over any wire.
Benefits:
- Reduce time-to-market and keep costs down
- Streamline steps needed to bring your design to fruition
- Simplify product life cycle management and reduce bill of material (BOM) expenses
- Ensure signal and power integrity and compliance with EMC requirements
- Ensure standards compliance and interoperability
- Eliminate the difficulties that come with PCB design and integration
Upgrade Your Existing Wiring Infrastructure into a Modern,
High-Speed, Secure Network with the BRIDGIT-BAS™ SoM "System-on-Module"
As smart building control networks continue to expand, system integrators are demanding communication technologies that deliver higher bandwidth, stronger security, greater node capacity, and long-range reliability — all without increasing installation costs or complexity. That’s exactly the challenge we are solving with Nessum-Wire. Built on IEEE 1901 2020 and approved as ANSI/CTA 709.8, Nessum-Wire brings megabit-class speeds, crypto-strong security, free topology, and multi-kilometer reach to existing powered and unpowered building wiring.
This compact transceiver delivers exceptional capability in a small footprint, operating as a full Layer‑2 switch to provide effortless, plug‑and‑play serial bridging across virtually any powered or unpowered wiring. It’s a simple drop‑in upgrade that unlocks next‑generation performance for building automation systems.
Key Features:
- Fully Integrated, Low-Cost Nessum Transceiver System-on-Module
- Based on IEEE 1901c and ITU-G.9905 communication and networking standard
- Built in Layer 2 switching function supports Ethernet bridging and RS 485 serial bridging
- Enables seamless bridging between BACnet MS/TP and BACnet/IP
- Enables seamless bridging between Modbus RTU and Modbus TCP/IP
- Serves as a replacement for the LonMark FT 10 physical layer
- Works over any powered or unpowered wire
- Polarity-insensitive connection, and no terminations required
- Self-healing MESH network, and Multi-hop functionality
- Crypto-strong AES-128 encryption engine for the highest security
- Scalable up to 1024 nodes across your twisted pair network
- 100Mbps throughput distributed among all connected devices
- Total connected cable length of over 2000m
- Software configurable Master/Terminal/Repeater operating modes
- NetworkManager PC Software tool for network monitoring and device maintenance
Evaluation Made Easy with BRIDGIT™ NESSUM Adapter

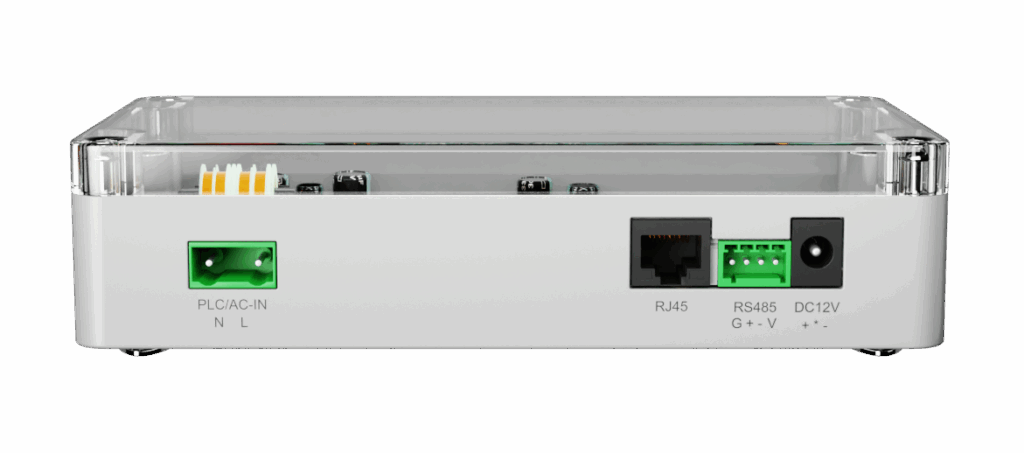

The BRIDGIT™ NESSUM Adapter is a complete Ethernet bridge based on state-of-the-art IEEE1901-2020 MAC/PHY, and ITU-T G.9905 CSMR (Centralized Metric Source Routing) standards for long-range, high-speed, IPv6-based, broadband power line communication. It is designed to quickly and easily evaluate the technology and its performance under various lab and field conditions. The BRIDGIT™ NESSUM Bridge has everything you need to test Ethernet over AC/DC power lines, or dedicated lines (twisted-pair/RS485) right out of the box. In addition, you can get a firsthand look at the performance of our compact, surface-mount BRIDGIT SOM (System-on-Module), which is at the heart of the BRIDGIT™ NESSUM Bridge.
The BRIDGIT™ NESSUM Bridge Adapter is offered as part of our development packages, and standard evaluation kits, or can be purchased separately.
Ecolinqx™ Network Manager Utility Software:
Effortless Management for Your Nessum-based Network and Devices

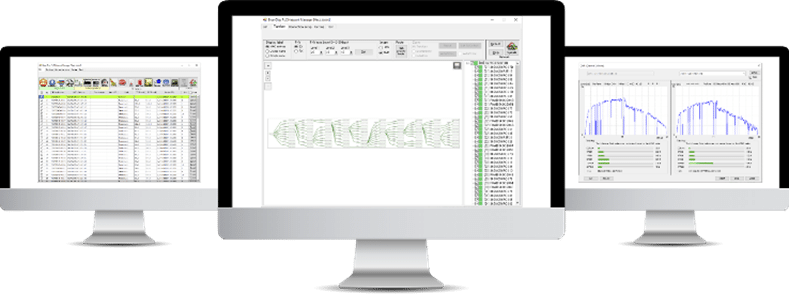

The Ecolinqx Network Manager is a Windows®-based utility software provided as part of our support packages. It is designed to streamline the setup, configuration, and maintenance of your BRIDGIT Devices. Additionally, it offers a complete graphical view of your Nessum network and provides a comprehensive suite of tools to ensure optimal performance and visibility.
Key Features:
- Device Discovery & Control: Easily view and manage all Nessum-based devices connected to your network.
- Network Topology Visualization: Gain a clear understanding of your network’s layout and analyze Carrier-to-Interference-and-Noise Ratio (CINR) for specific communication channels.
- Comprehensive Device Settings: Access and modify a wide range of parameters, including common, QOS, MAC, Multihop, Quatro mode, and other advanced settings.
- Flexible Connection Setup: Configure IP address settings effortlessly to establish seamless communication with your devices.
- Efficient Firmware Updates: Keep your BRIDGIT devices up-to-date with a straightforward firmware update function.
- System Area Management: Check, compare, and update critical system parameters across your devices.
- Detailed Log Analysis: Retrieve and analyze operational logs for effective network troubleshooting and performance monitoring.
- Direct System Commands: Execute system-level commands directly from the application for advanced control.
- Fixed Node Position Topology: Utilize CSV files with pixel or latitude/longitude coordinates to precisely visualize your network’s topology based on physical locations.
BRIDGIT™‑AIR Evaluation Kit
The BRIDGIT‑Air™ Evaluation Kit provides everything needed to explore, configure, and validate the BRIDGIT™ System‑on‑Module solution for your application. Each kit includes all essential hardware, software, and documentation required to simplify setup and accelerate testing.
Complementing the evaluation kit, the BRIDGIT™ Development Platform delivers a complete environment for rapid integration into smart industrial devices. It enables engineers to prototype and deploy contactless communication systems with minimal effort—significantly reducing design cycles, engineering time, and overall development cost.
Ecolinqx Nessum Sniffer and Packet Monitor:
Unlocking Network Insights
The Ecolinqx Nessum Sniffer Adapter and Packet Monitor Software is an indispensable tool for anyone involved in the development, debugging, and maintenance of applications utilizing Nessum Broadband Power Line (BPL) communication technology.
The Ecolinqx Sniffer offers all the necessary hardware and software to deliver crucial visibility into the flow of Nessum frames along your transmission lines, ensuring optimal network performance and efficient troubleshooting. By leveraging the capabilities of Wireshark®, a popular application equipped with a comprehensive graphical user interface, the Nessum Sniffer allows you to analyze Nessum frames according to the IEEE 1901-2020 standard.
Key Features:
- Frame Monitoring: Observe Nessum frame flows along the transmission line.
- CINR and RSSI Display: Simplified CINR (Channel-to-Interference-and-Noise Ratio) and RSSI (Received Signal Strength Indication) values of received Nessum frames are displayed111111.
- Frame Body Analysis (with specific settings): With proper configuration, the frame body of broadcast and control frames can be observed.
- Wireshark Integration: Analyze Nessum frames using Wireshark’s robust GUI, adhering to the IEEE 1901-2020 standard.
What is included in the package:
- Nessum BRIDGIT Adapter with Sniffer SW and Accessories
- PC with Windows 11
- Network Manager Software
- Wireshark® (Version 3.4.8 or later, Windows 64-bit version recommended)
BRIDGIT Development Platform
The BRIDGIT™ Development Platform offers everything you need to integrate NESSUM broadband communication into your smart IoT devices.
The Evaluation Kit includes all the hardware, software, and documentation to easily test, configure, and integrate the BRIDGIT™ System-on-Module solution into your device quickly and reduce your design engineering time.
The BRIDGIT Network Manager software suite, included in the kit, provides a comprehensive management toolbox to quickly set up, configure, monitor, and troubleshoot complex networks.
- Automatically builds and displays network topology
- Setup, and Monitor all devices on the network
- Display TX/RX PHY rate, CINR, AGC and more
- Microsoft Windows 10 Professional
ECOLINQX Corporation reserves the right to make any change herein at any time without prior notice. ECOLINQX Corporation does not assume any responsibility or liability arising out of the application or use of any product or service described herein except as explicitly agreed upon.
